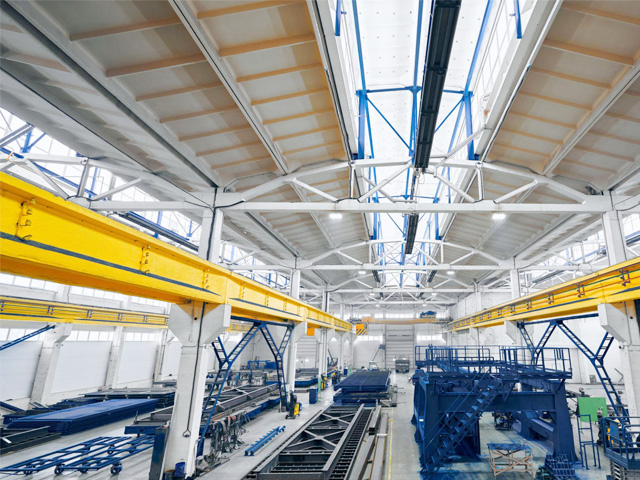

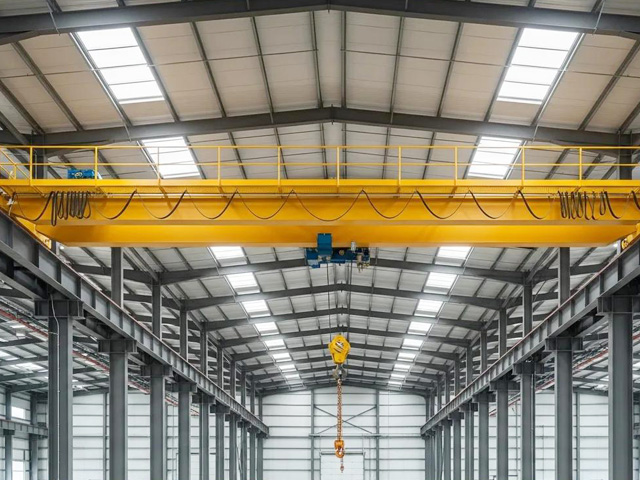

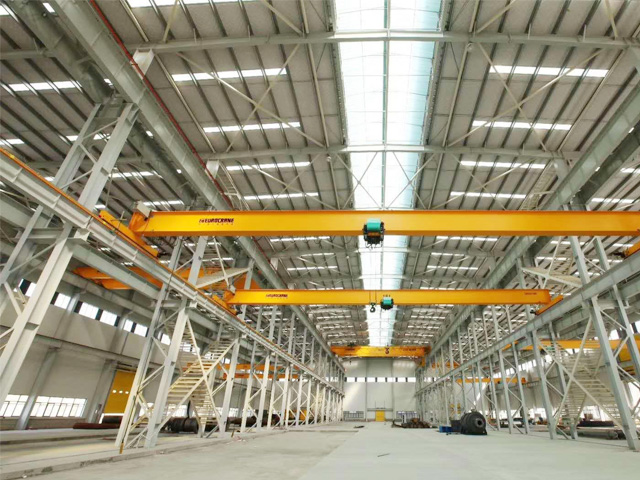

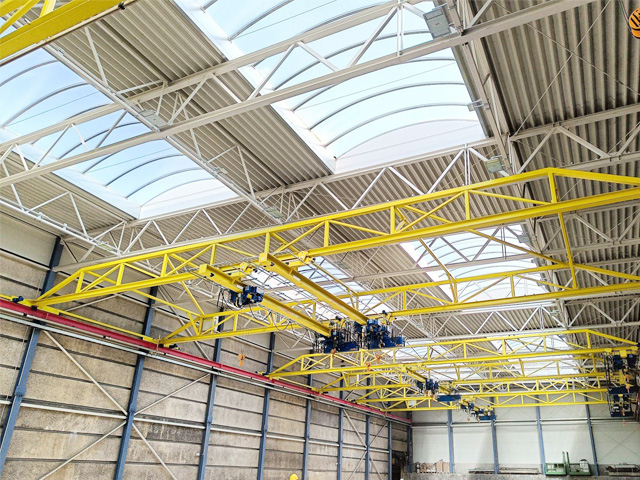

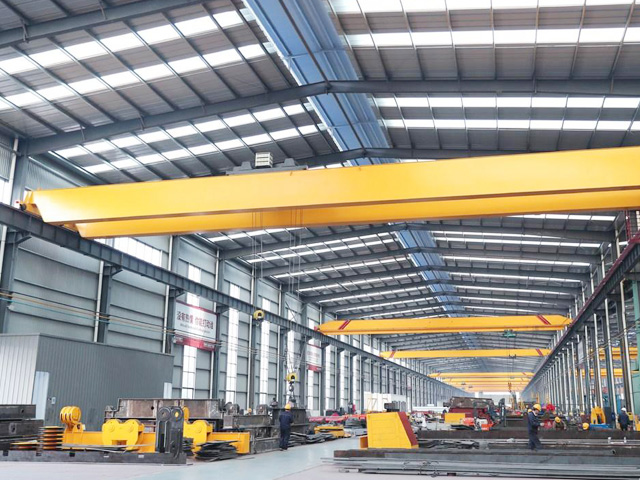

Heavy Crane Structural System

Structural Features

• Reinforced Steel Frame System

  The structure adopts high-strength steel columns, beams, and reinforced connection systems to withstand the combined loads from the building and crane operation.

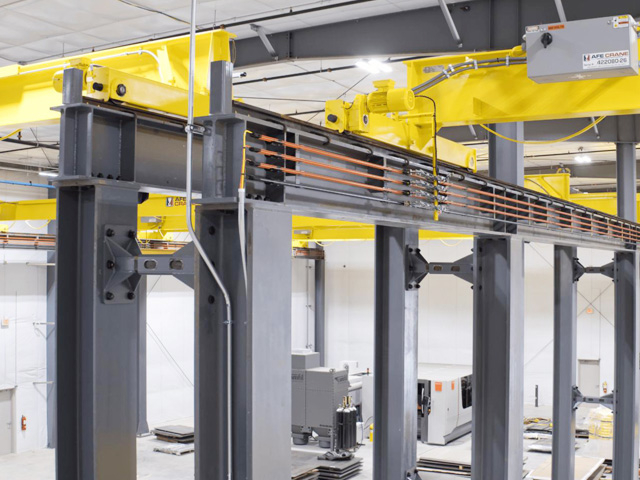

• Integrated Crane Runway Design

  Crane beams and runway systems are precisely engineered and integrated into the main steel structure to ensure smooth and safe crane movement.

• High Load-Bearing Capacity

  The system is optimized for heavy equipment, lifting operations, and dynamic loads generated during frequent crane usage.

• Precision Manufacturing

  All steel components are fabricated with accurate dimensions to ensure proper alignment, reliable connections, and efficient installation.

Key Advantages

• Designed for heavy-duty lifting operations

• High resistance to dynamic and impact loads

• Stable support for overhead crane systems

• Suitable for large-span industrial buildings

• Enhanced structural safety and durability

• Flexible layout for different production processes

• Reduced maintenance requirements

Typical Applications

• Heavy machinery manufacturing plants

• Steel processing workshops

• Shipbuilding facilities

• Automotive production plants

• Power equipment factories

• Industrial assembly workshops

• Equipment maintenance buildings

Crane System Compatibility

Our heavy crane steel structures can be customized for different crane requirements:

• Overhead bridge cranes

• Double girder cranes

• Single girder cranes

• Heavy-duty lifting systems

• Production line handling cranes

Engineering Capability

We provide customized heavy crane structural solutions from steel structure design support, fabrication, surface treatment, to project delivery. Each system is engineered according to crane capacity, building dimensions, and operational requirements to ensure safe and efficient industrial operations.
