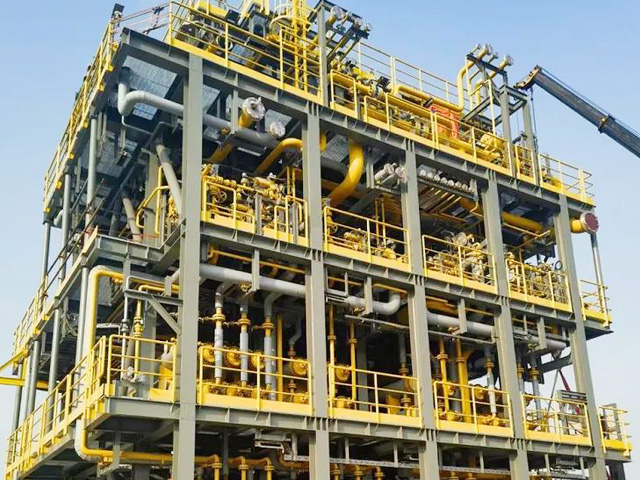

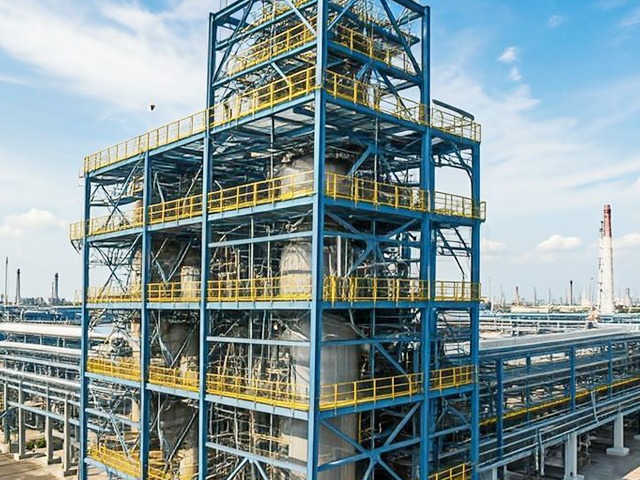

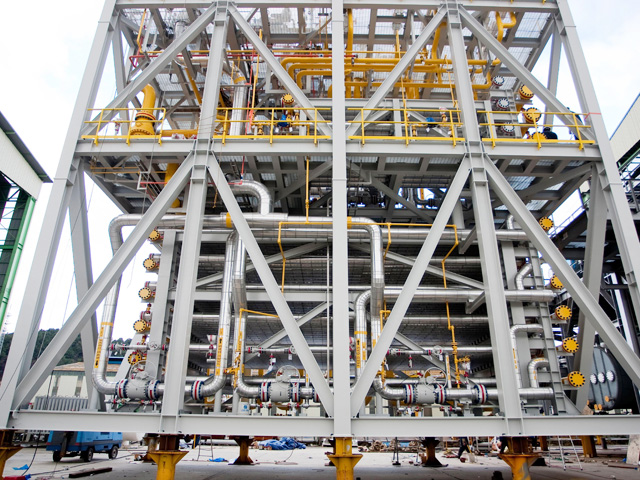

Multi-story Steel Frame Modular Structure

Structural Features

• Factory Prefabricated Modular Units

  Each module is manufactured in controlled fabrication workshops, ensuring high dimensional accuracy, welding quality, and coating consistency before shipment to site.

• Multi-Level Integrated Steel Frame System

  Modules are designed as stacked steel frame units, forming stable multi-story process structures suitable for piping, equipment, and maintenance access.

• Heavy-Duty Load Bearing Capability

  The structure is engineered to support process equipment, piping systems, platforms, and dynamic operational loads typical in petrochemical environments.

• Efficient On-Site Assembly

  Modules are transported and lifted into position using heavy cranes, significantly reducing on-site fabrication time and safety risks.

Key Advantages

• Significant reduction in on-site construction time

• High precision factory-controlled fabrication quality

• Safer installation process in hazardous environments

• Suitable for complex refinery and chemical layouts

• Strong structural stability under heavy industrial loads

• Modular scalability for future expansion or modification

• Improved project schedule control and cost efficiency

Typical Applications

• Petrochemical refining units

• Chemical processing plants

• Gas processing facilities

• Offshore and onshore modular platforms

• Industrial process buildings

• Equipment support structures

• Skid-mounted multi-level systems

Engineering Capability

We provide full-cycle solutions for multi-story modular steel frame systems, including structural design coordination, modular fabrication, anti-corrosion treatment, logistics planning, and on-site installation support.

Each module is engineered according to project-specific requirements to ensure safe integration with process equipment, piping systems, and operational layouts in refinery environments.
