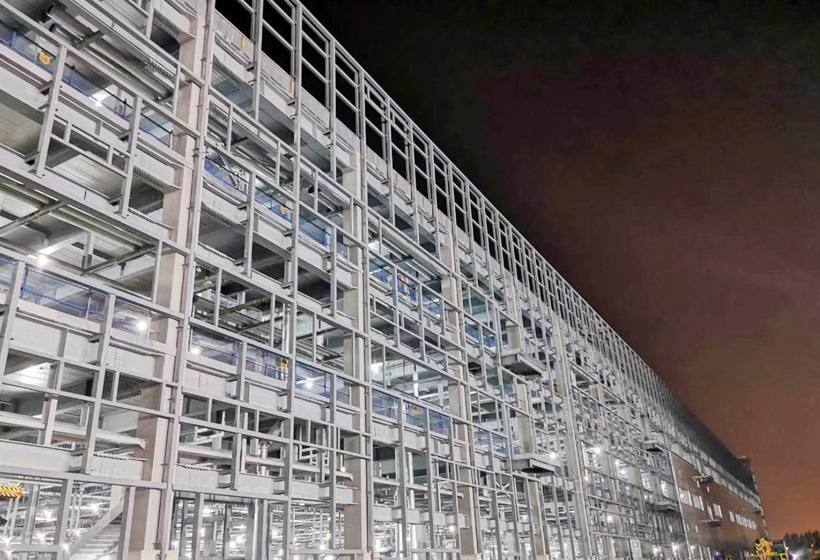

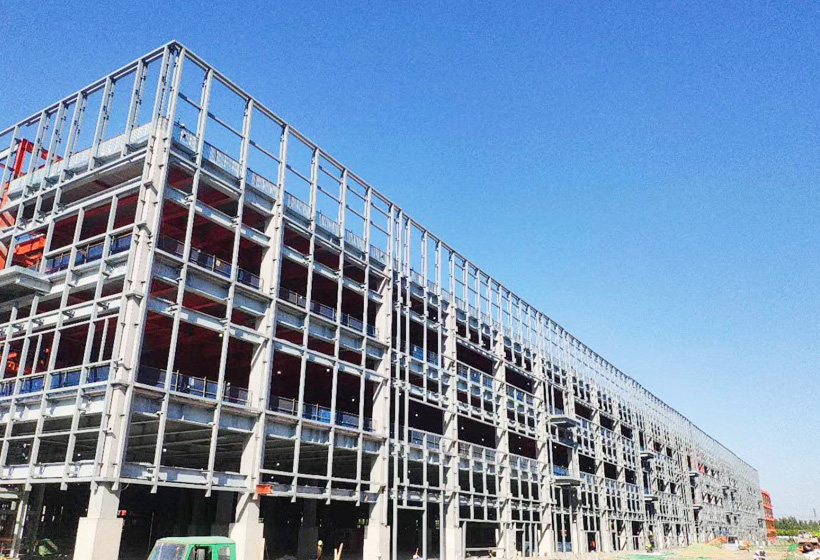

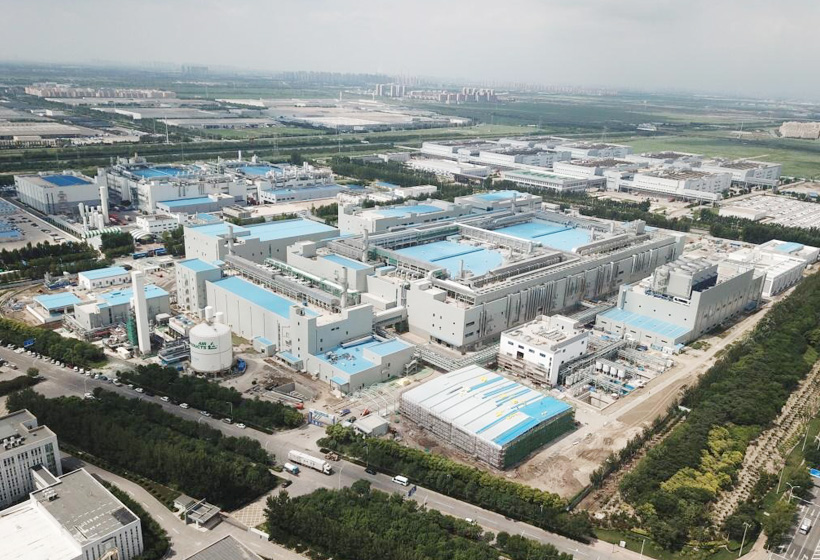

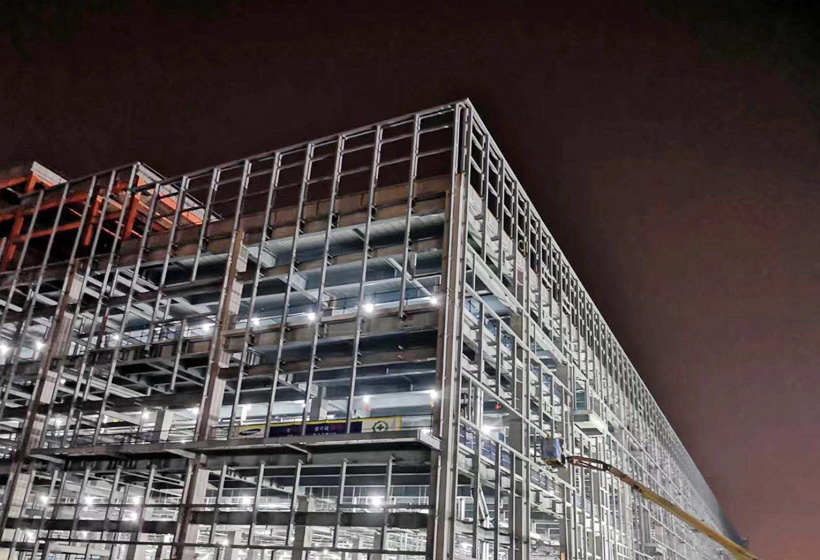

Binhai Samsung Project

Main Material: Primary steel structure Q355B, purlins Q235B

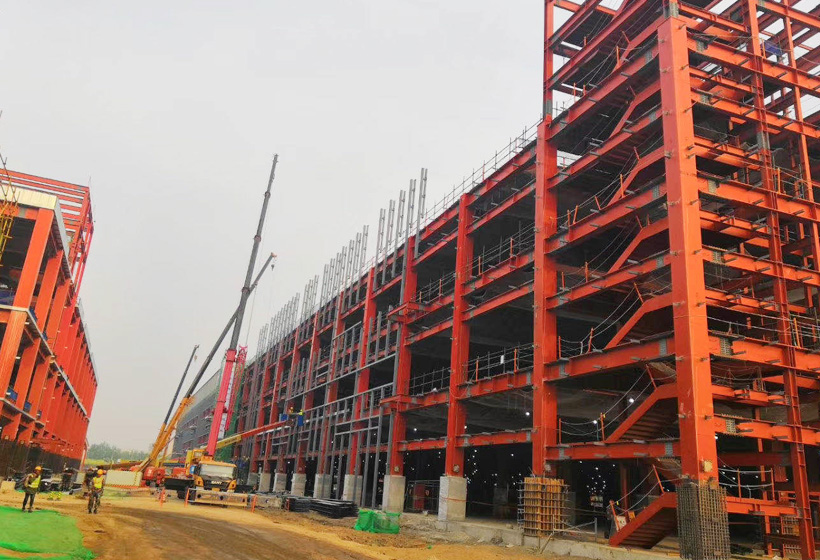

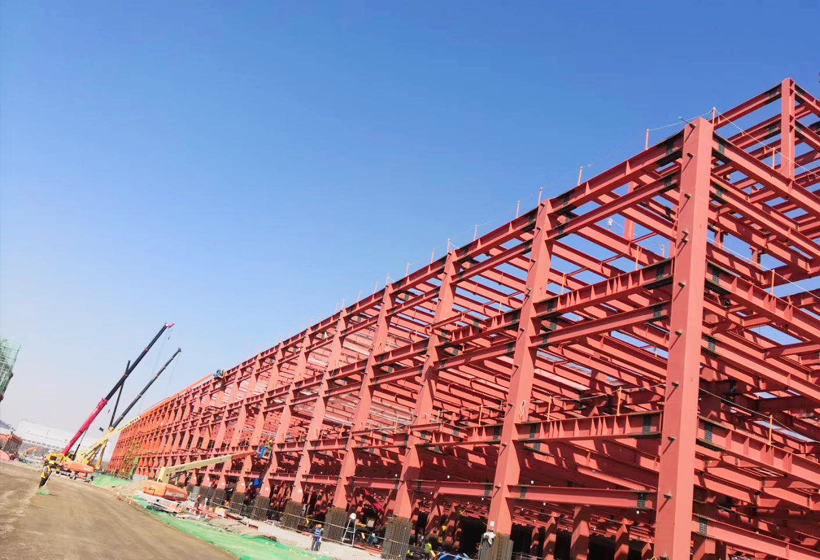

Structural Form: Portal frame + multi-story steel frame, suitable for cleanroom load requirements of electronic workshops

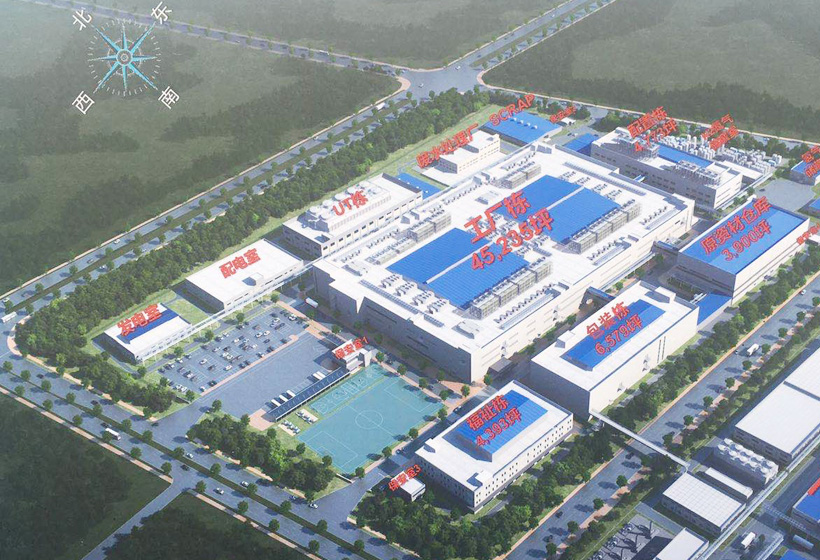

Building Area: Approximately 186,000㎡ (main workshop / warehouse / supporting facilities), located in Tianjin Economic-Technological Development Area

Eave Height / Span: Eave height 8–15m, single span 24–30m, column spacing 7.5m

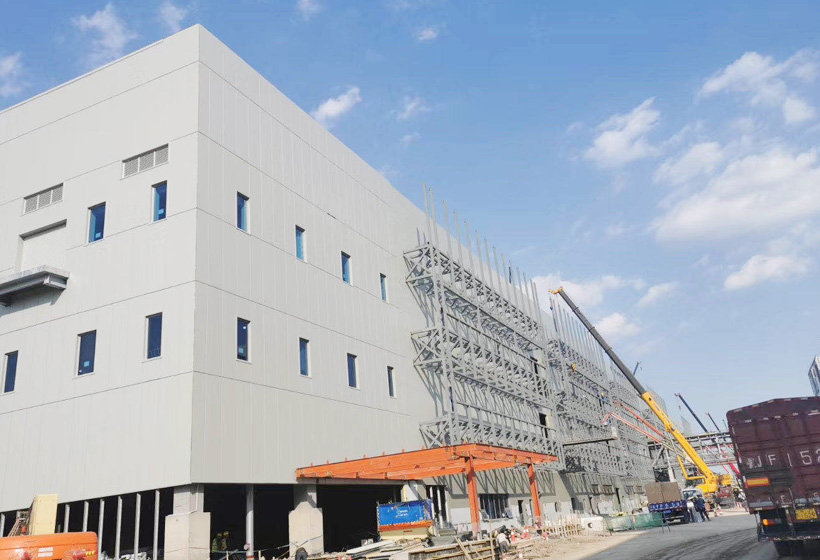

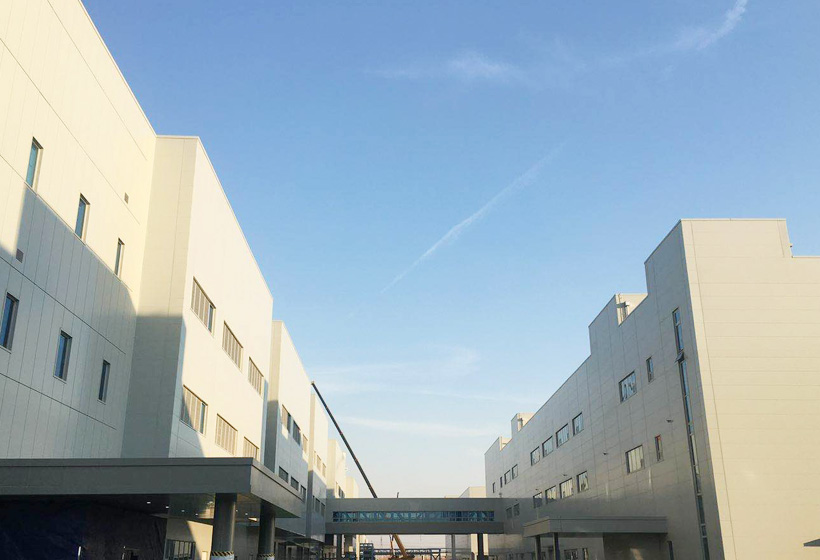

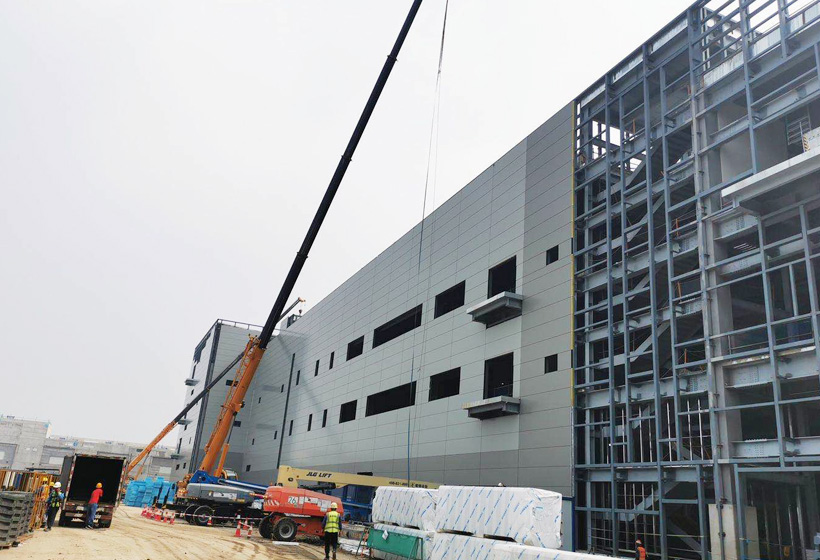

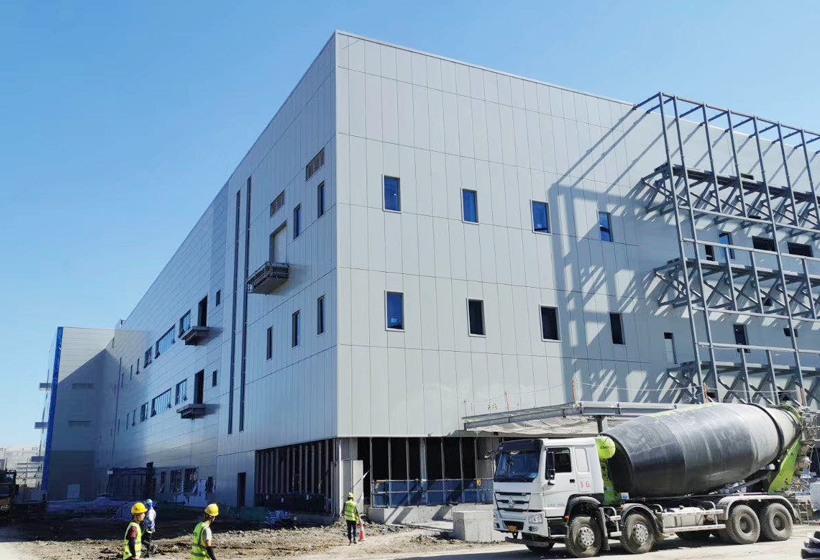

Cladding System: 50mm rock wool color steel sandwich panel, dustproof, anti-corrosion, suitable for constant temperature and humidity control

Anti-corrosion Process: Factory rust removal + epoxy zinc-rich primer + fluorocarbon topcoat, suitable for high salt spray coastal environment

Foundation Type: Pile foundation + independent pile cap, specially designed for soft soil foundation

Product Advantages:

Large-span column-free space, meeting flexible layout requirements for electronic production lines Special coastal anti-corrosion system, with a service life of more than 25 years

High factory prefabrication rate and efficient on-site installation, suitable for EPC general contracting schedule in Tianjin Economic-Technological Development Area

Full industrial chain service: one-stop delivery covering design, production, logistics, installation, and acceptance

Cleanroom compatibility: meets dustproof, anti-static, constant temperature, and constant humidity requirements for electronic workshops
