Core Parameters
Main Material: Primary steel structure Q355B, purlins Q235B
Structural Form: Portal frame light steel system with large-span column-free space
Building Area: Approximately 27,000㎡ (single building)
Eave Height / Span: Eave height 10–12m, single span 24m, column spacing 7.5m

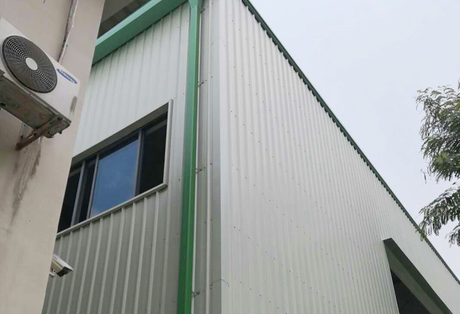

Cladding System: 50mm rock wool color steel sandwich panel, moisture-proof, heat-insulating, well-ventilated, and dustproof
Anti-corrosion Process: Factory shot blasting + epoxy zinc-rich primer + weather-resistant topcoat, resistant to salt spray and humidity

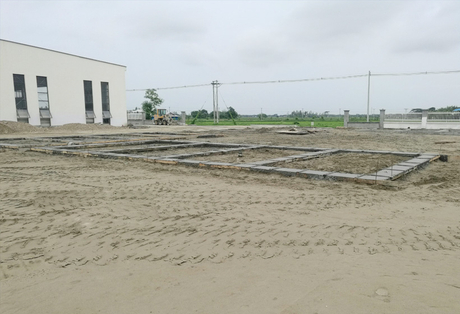

Foundation Type: Independent foundation + ground beam, suitable for Myanmar’s soft soil foundation
Product Advantages
High load-bearing flooring, suitable for bulk cargo storage such as grain, fertilizer, and agricultural materials
Special coastal anti-corrosion system, with a service life of more than 20 years
Large-span open space, suitable for shelving systems, forklifts, and loading/unloading equipment operations
Factory prefabrication with fast on-site installation, meeting overseas project schedule requirements
Full industrial chain service: one-stop delivery covering design, production, sea transportation, installation, and acceptance
 |  |
